Duplicate Bug Report Detection System

Image of Bug

Background

As software programs become increasingly large and complex, it is important to improve the quality of software maintenance. Bug report recommendations can significantly improve the triaging of bug reports. It is difficult to inspect the new incoming reports manually to route to the developers who have fixed the duplicate bugs. Automatic identification of Duplicate bug reports is a critical research problem in the software repositories’ mining area.

Aim

The project aims to propose an effective unsupervised and supervised models to detect duplicate bug report in the Bugzilla repository. The search engine finds the top-N most similar reports to a given report, and deduplicate issues faster. Moreover, it presents an analytical dashboard to developers to understand the different aspects of the bug reports’ statistics and major sources of bug generation.

ETL Process

The search engine extracts data using the Bugzilla REST API https://wiki.mozilla.org/Bugzilla:REST_API and creates a data-lake using MongoDB. Then it verifies the data quality and conducts data wrangling and cleaning.

Data Preparation

Since the data is considered as big data the engine loads the data to Hadoop HDFS and performs text preprocessing using PySpark which includes:

Then it stores the processed data in PostgreSQL.

Evaluation

The empirical evaluation is performed on the open datasets of the Bugzilla repository. The metrics used for evaluation are Mean Average Precision (MAP), Mean Reciprocal Rank (MRR) and Recall rate.

Visualization and Presentation

The top-N most similar reports to a given report are presented on a web page using Flask. Also, It presents the developer the statistical information about the bug reports in a dashboard using D3.js

Implementation Method

Implementation Method: The search engine is implemented on AWS using Docker Composer and ECS with Fargate

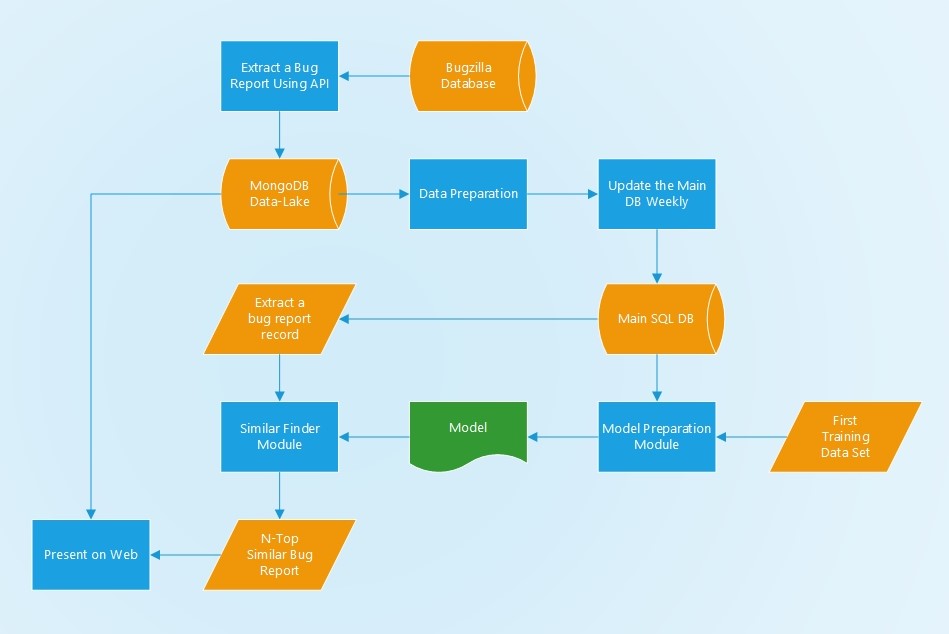

Image of Application Process

IMAGE ALT TEXT HERE

Installation Guide

System Requirement

You need to have at least 10GB of FREE RAM available to run this application.

To run the application there are two options:

Implement the Application Using Docker

Please follow the steps below:

  1. Install docker CE from https://docs.docker.com/install/linux/docker-ce/ubuntu/

  2. Install docker compose from https://docs.docker.com/compose/install/

  3. Create a vim file with name docker-compose.yml where you want to run the application using the content below:

version: '3'
services:
  web:
    build: .
    image: applia65/duplicatebugreportsearchengine:web
    # restart: always
    environment:
      DATABASE_HOST: postgres_docker
      DATABASE_USER: postgres
      DATABASE_PASSWD: password123
      DATABASE_DATABSE_NAME: bug_database
      MONGO_ADDRESS: mongodb://mongodb_docker:27017/
    ports:
      - "0.0.0.0:5000:5000"
    depends_on:
      - postgres_docker
      - mongodb_docker

  postgres_docker:
    image: postgres:10
    # restart: always
    # # Allow access from Development machine
    # ports:
    #  - "0.0.0.0:5432:5432"
    volumes:
      - ./pg_data/:/var/lib/postgresql/data:Z
    environment:
      POSTGRES_USER: postgres
      POSTGRES_PASSWORD: password123
      POSTGRES_DB: bug_database

  mongodb_docker:
    image: mongo:latest
    #restart: always
    #environment:
    #  MONGO_INITDB_ROOT_USERNAME: root
    #  MONGO_INITDB_ROOT_PASSWORD: example
  1. Execute the code below where you create docker-compose.yml and wait until your server downloads all containers.
sudo docker-compose pull
  1. Run the application.
sudo docker-compose up
  1. Open your browser using 0.0.0.0:5000 address.

Implement the Application Using the Source Code Ubuntu

Please follow the steps below:

  1. Pull the codes by git

  2. Install all requirements

pip install --no-cache-dir -r requirements.txt
  1. Install the WordNet which is about 900 MB
python -m spacy download en_core_web_lg

  1. Install MongoDB from https://docs.mongodb.com/manual/tutorial/install-mongodb-on-ubuntu/

  2. Run the MongoDB service

sudo systemctl start mongod
  1. Verify that MongoDB has started successfully.
sudo systemctl status mongod

  1. Install PostgreSQL Version 10 from https://www.postgresql.org/download/linux/debian/

  2. Run the Postgresql service

sudo systemctl start postgresql
  1. Verify that Postgresql has started successfully.
sudo systemctl status postgresql

  1. Create a user postgres with password password123

  2. Run the application

python ./main.py
  1. Open your browser using 0.0.0.0:5000 address.

Please contact us if you have any question.

- Alireza Ghasemieh alireza@ghasemieh.com

- Sukhjit Singh Sehra sukhjit.sehra@ryerson.ca

Special thanks to Sukhjit for helping me with this project.
